BELLOWS
FSP Metal Bellows

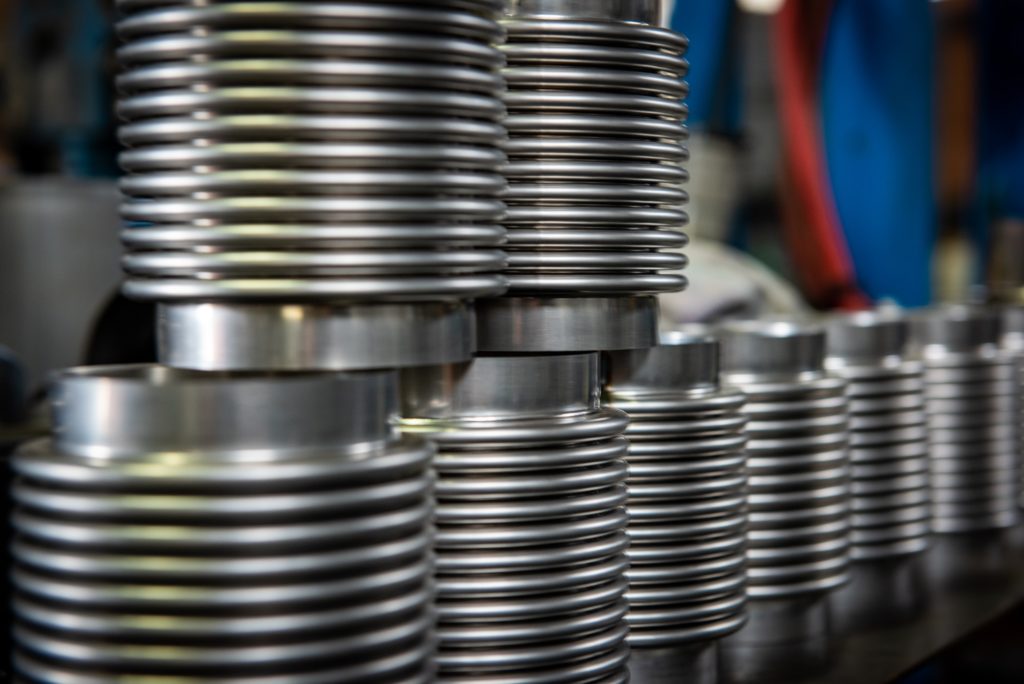

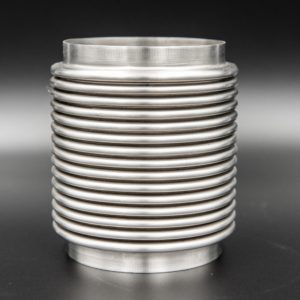

Metal bellows are used in various industries such as transportation, automotive, Performance and Racing Industry (PRI), Oil and gas, medical, aerospace, marine, power generating, solar and much more. We manufacture single and multi-ply bellows in sizes ranging from 2″ to 24″.
Many Industries use metal bellows in various sizes and materials:
Automotive – 2″-6″
Performance and Racing Industry – 2″ – 6″
Transportation – 2″ to 8″
Medical – 2″ to 4″
Aerospace – 2″ to any required size
Marine – 2″ to 6″
Power Generating – 2″ to any required size
Solar – 2″ to any required size
Oil and Gas – 2″ to any required size
Materials: Inconel, Titanium, Hastellalloy X, Stainless 321, 316, 304, Bronze, Copper

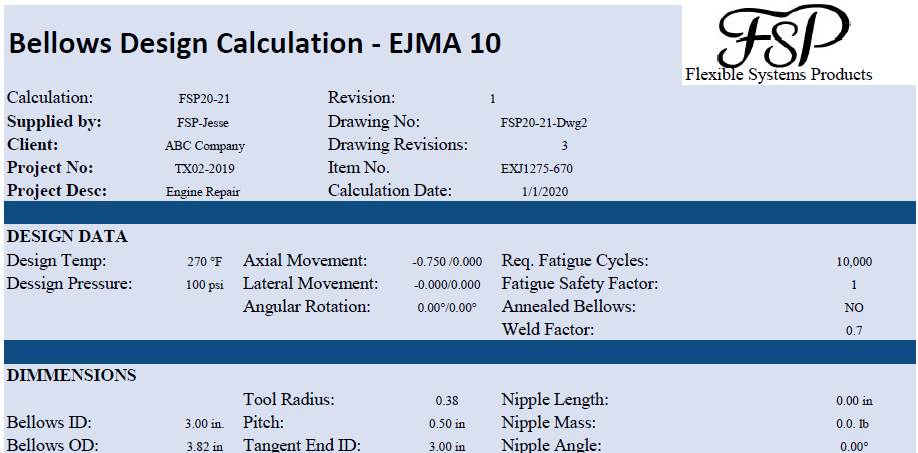

EJMA 10th Edition
Using our EJMA 10th proprietary software, we are capable of designing bellows to spec. Many of our exhaust bellow capsules are designed to withstand 5 PSIG and 1000° F.
If other requirements are needed, we design the bellow capsule to your needed requirements for your exhaust system and/or pipe lines.
Testing
We also do various testing to our products such as X-ray weld testing and the following:
- hydro testing
- weld test
- pressure testing

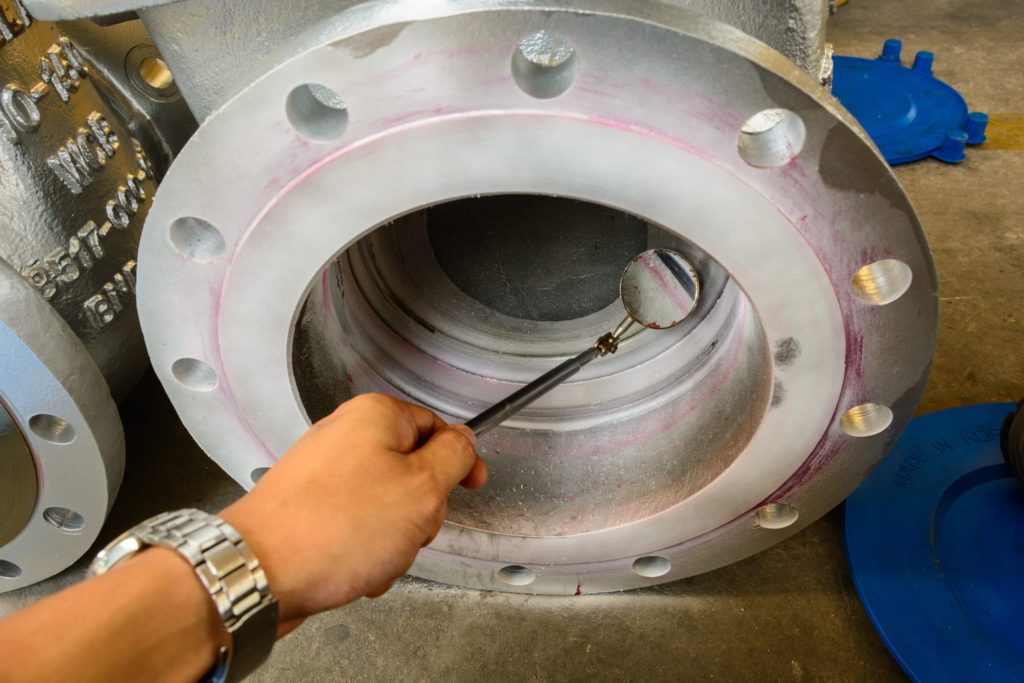

- LPI testing
- Others
Maximum Bellow Cycles
A cycle is when the metal bellow is moved from its initial installed position, Start-up and Shut Down, and while operating , each movement can be caused by heat, stress, axial or lateral movements and pressure.
Using our EJMA software we strive to provide you with the maximum amount of cycles to your desired specs. Therefor, our low pressure exhaust bellows are designed to withstand 5 PSIG and 1000°F with a cycle life of 10,000+ cycles given minimal movements in your current exhaust system. Contact us if you would like more information regarding our bellows.
If you need a custom bellow, please use our REQUEST FOR QUOTE for a faster service.
